January 14, 2006

It's time to plan the lights. I will install
them after doing the mods to the case, itself.

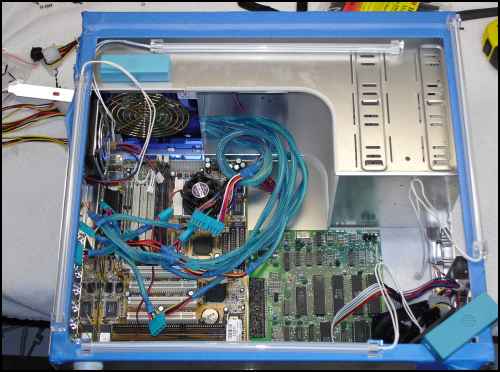

There are four lights and two power supplies.

In the upper left you can see the backplane
cover with the on/off switch for the lights.

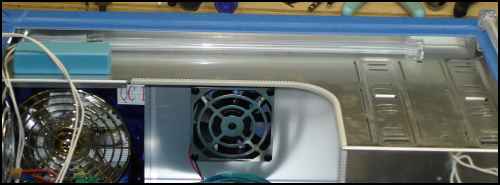

The top light is easy and tucks in the case nicely.

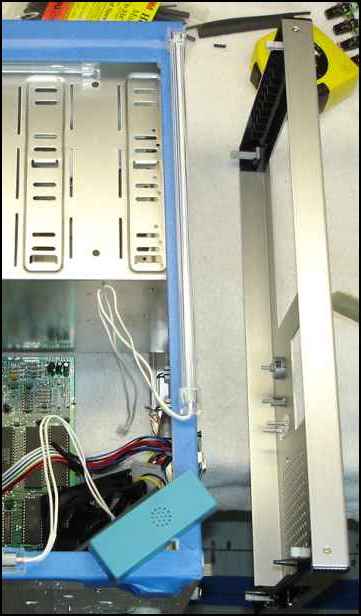

The front bezel has nothing
to get in the way of the light.

Tucks in here.

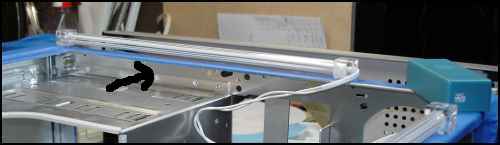

Just slides under the drive bay attachment.
Black tape holds up the other for the photo.

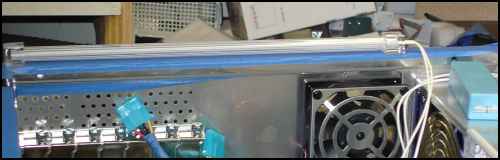

The back is not so simple. The fan
limits where it can go; none good.

I still need to confer with Alan on the cooling plan.

Alan sent me an image to use for the template
of the side panel cut-out. I enlarged it to 12X12
inches and printed it out.

Next... as in next time.
