WTH is that?

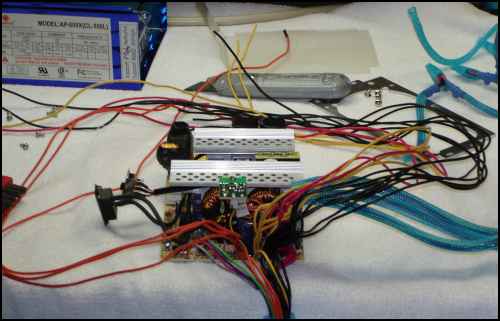

It's the insides of Alan's new power supply.

I knew I was gonna need to mod the power supply.

I'll take the three on the right and make them
one cable just for the drive power subsystem.

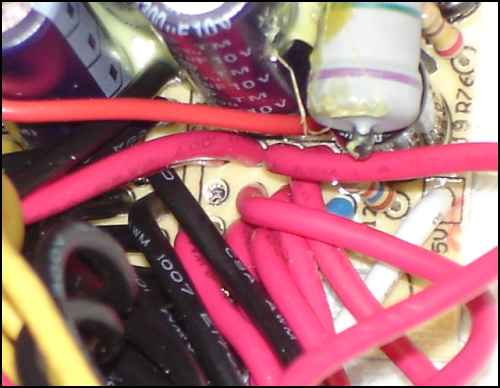

I need three yellow and three red; plus
six black. Lucky for me there is one hole
left to add the needed red one.

My iron wasn't hot enough to heat the blob.
So I added a hot air gun to the iron. Worked great.

Almost done.

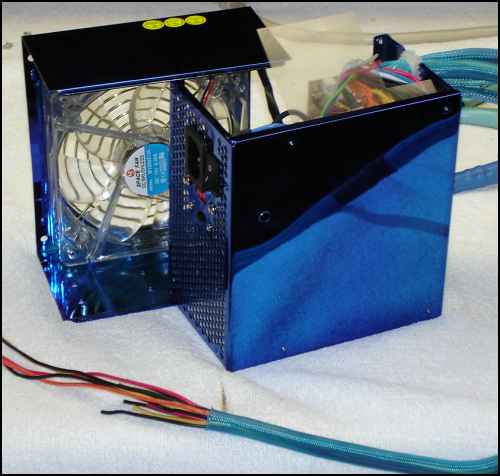

The blue color scratches easily.

And where does this cable led to?

The power distribution and switching subsystem.
