August 25, 2005
First thing is to take the case apart.
And now the front.
On the front is a three speed switch for the fans.
It's a delicate switch, so I'll tape a
piece of foam from the DVD box over it.
The aluminum is soft and will scratch
easily. I'll tape every everything to protect it.
Now, I'll start planning how to put the FD 3.5 mech,
it's controller board, and the matching faceplate in
the 3.5 cage.
First thought is to put the controller PCB
between the FD 3.5 mech and the PC 3.5 mech.
The blank plate is just the right
size for the decal from the FD 2000.
Here, I'm marking where the row of
lights, and the momentary switch should go.
Disassemble the FD.

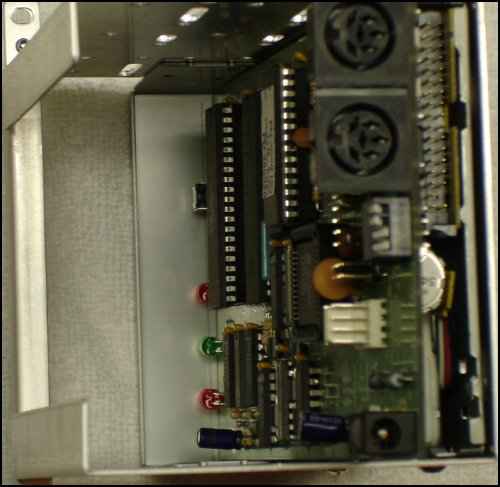

A test fit in the 3.5 cage. You can see
the pencil line where the lights should go.
But it's too close to the PC 3.5 mech.
So, I'll relocate it to the bottom of the three slots.
I made an insulator sheet from an old disk box.
It's real dense cardboard. I'm not worried about
it shorting out on the cage.
