June 13, 2005

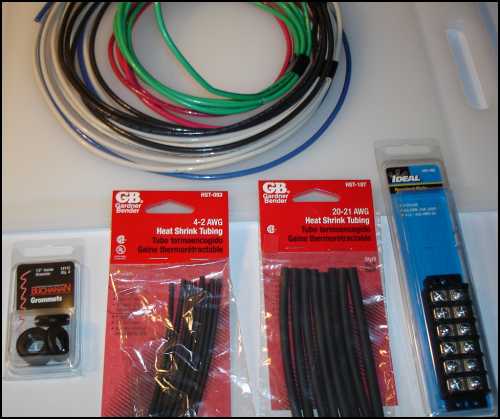

Another Sunday morning shopping trip. Heatsrink tubing, some #12 wire, hole grommets, and another terminal strip.

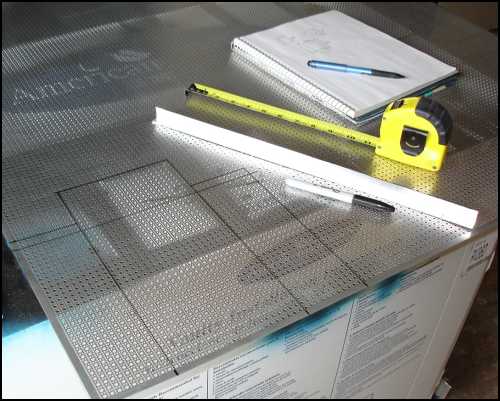

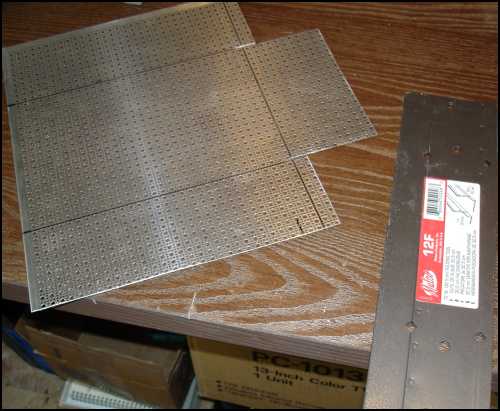

I also pick up a sheet of perforated aluminum. You can see the layout
for the Power supply cover.

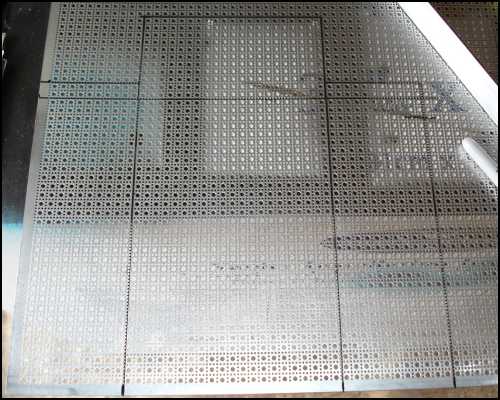

The layout. The bends will be
easy because of the perforation.

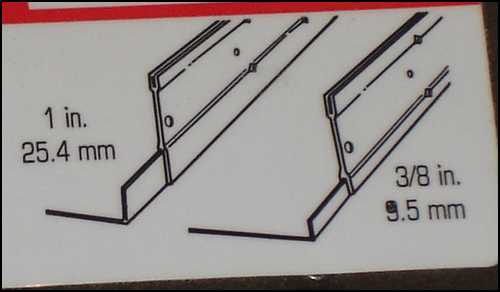

Cut and ready for bending. Next
to it is a hand held metal bender.
You can see how it works.

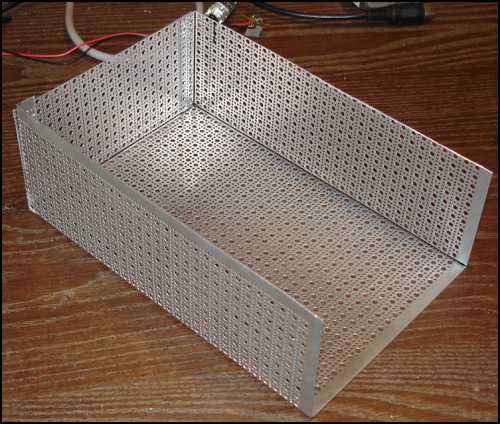

Folded and ready
to attach to the supply.

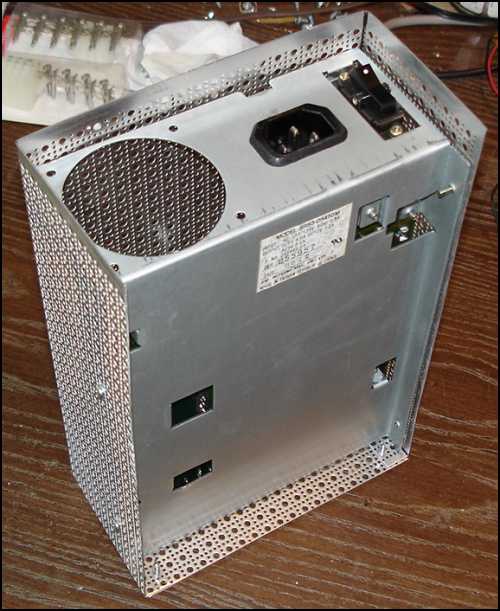

Attached.

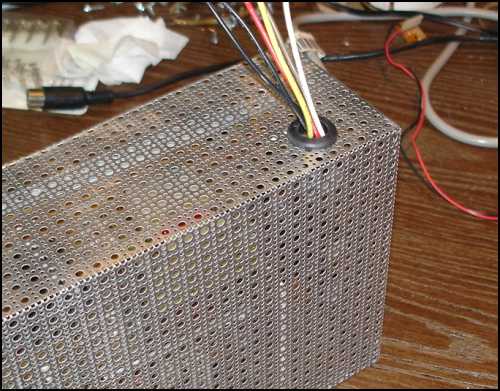

I cut a hole and installed
a grommet for the wires.

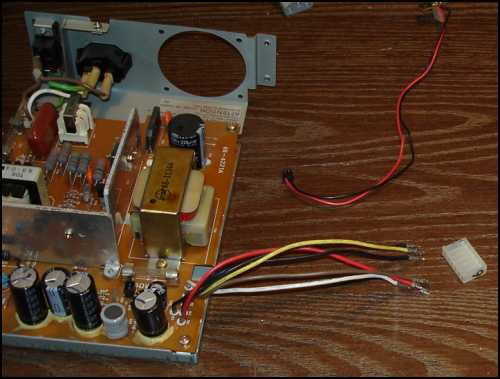

I removed the stock connector.

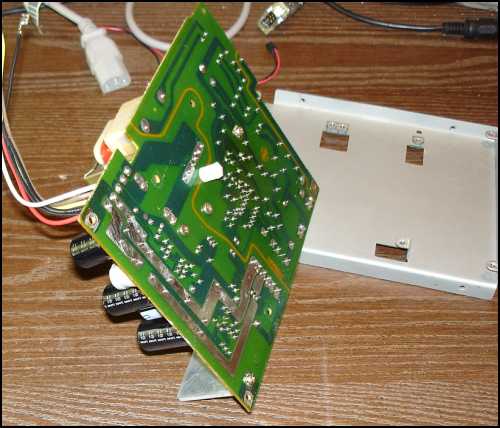

Preparing to remove
the wires from the PCB.

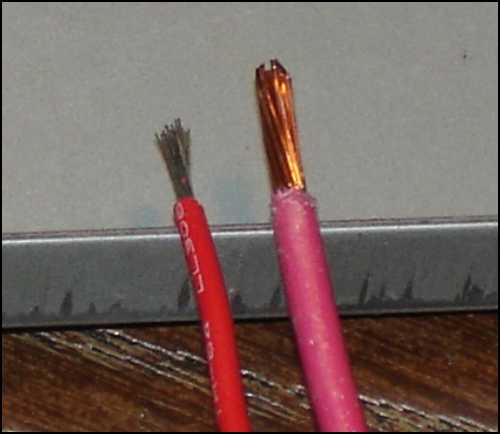

Because of the longer run, I will
up size the wires. Compare the
smaller, steel wire with the larger
#14 copper replacement.

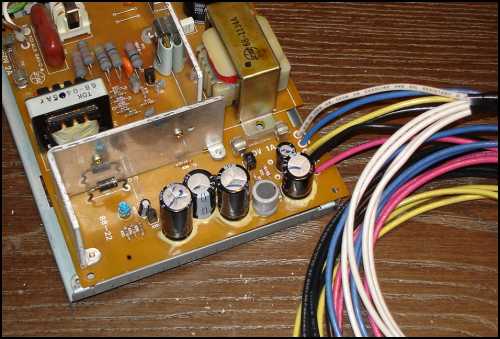

The wires replaced.
