June 21, 2005

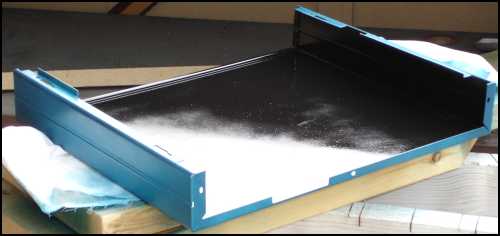

We left off last time with the cover sanded and primed. Now it has it's
finish coat inside and out.

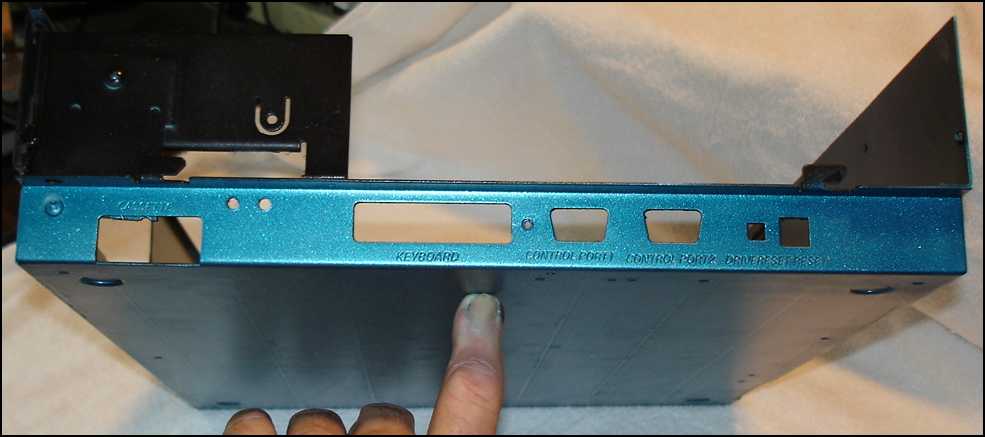

The bottom half of the case
painted and view from the rear.

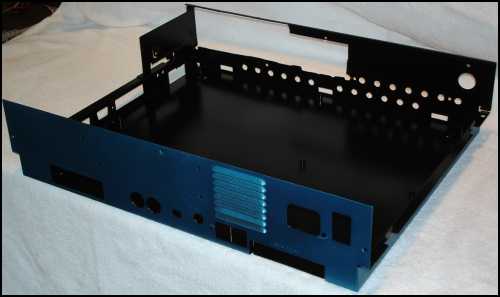

A shot from the front view.

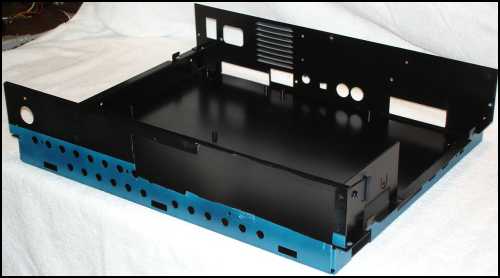

Side view.

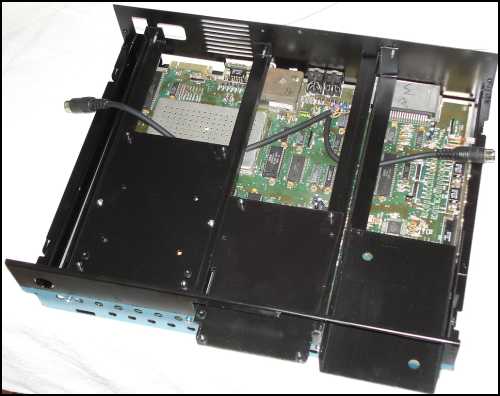

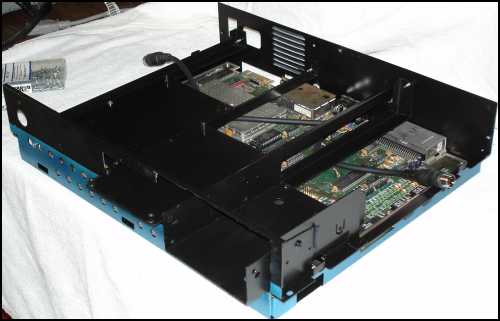

Here the drive
mounting rails are in place.

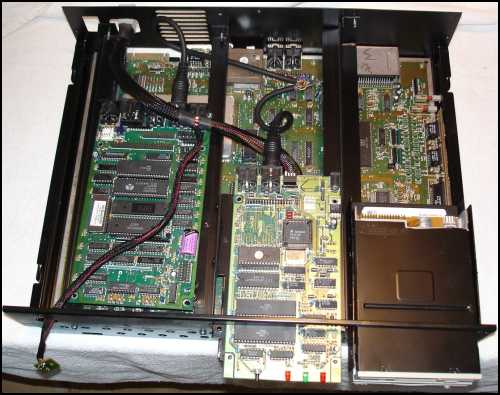

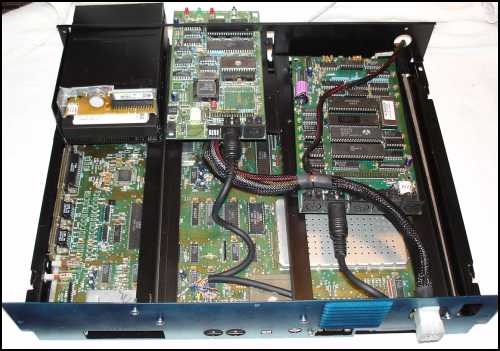

The drive electronics
and floppy drives in place.

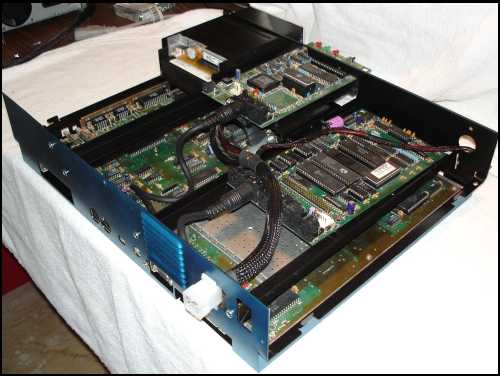

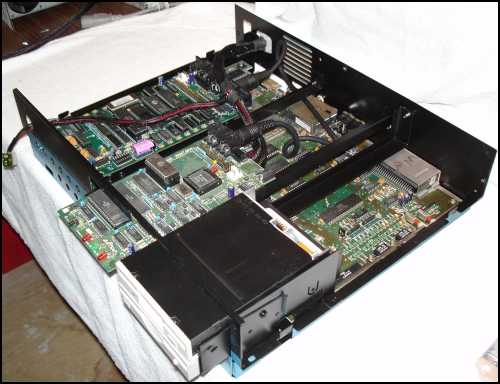

This is the first test fitting of all the parts.
Everything went together pretty good. Only a couple of minor adjustments.
