June 4, 2005

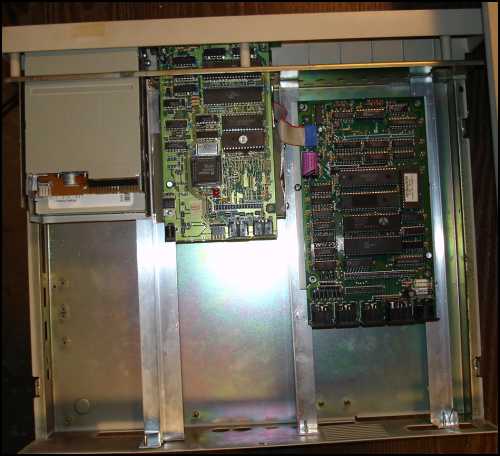

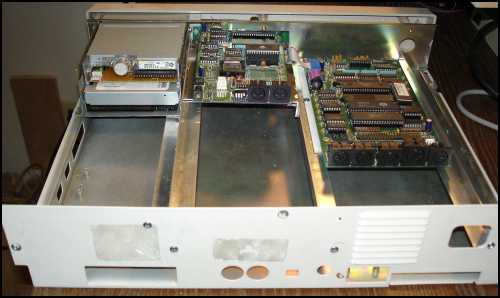

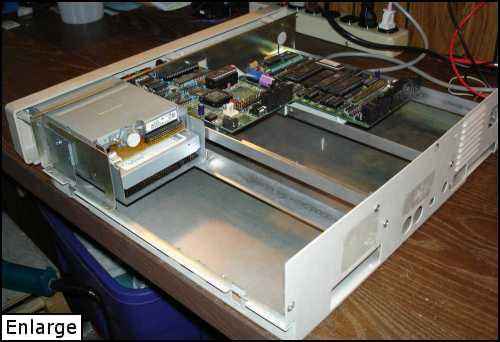

The FD 2000 case has been
modified to support the PCB.

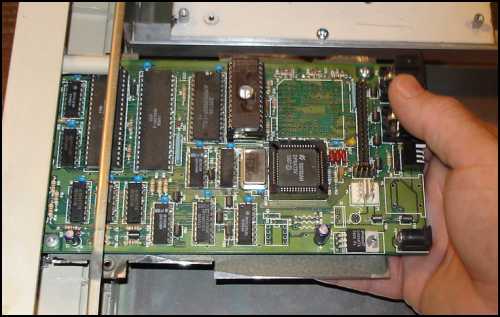

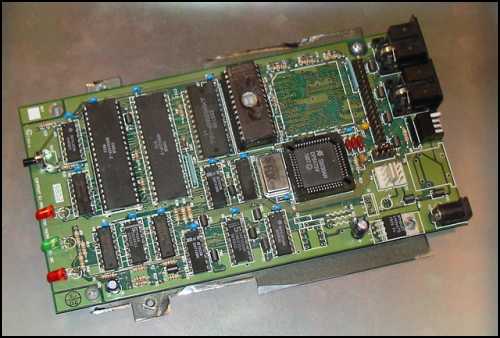

A test fit to get an idea
for where to mount it.

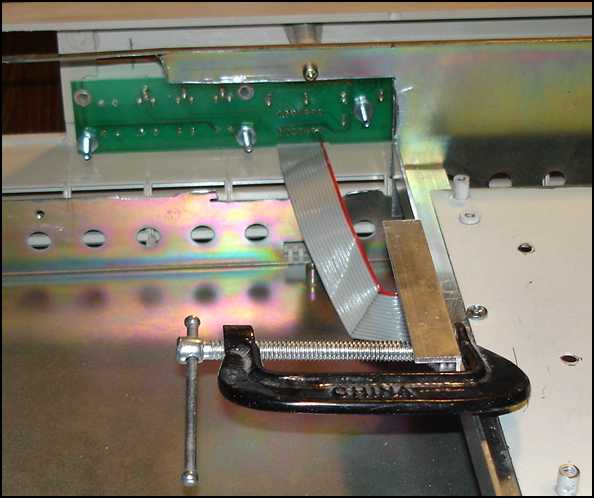

Mounting bracket clamped
in place at the needed height.

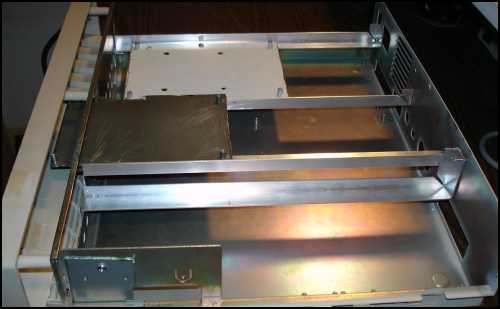

View without the FD 2000 board.
Ready to be drilled and screwed.
A lot of time is spent assembling and disassembling pieces on a project like this.

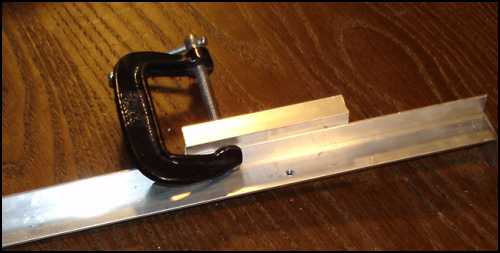

The mounts for the two PCB's.
