January 11, 2006

We left off last time with the serial harness half
complete. Two of the four drive connectors are
done with two to go.

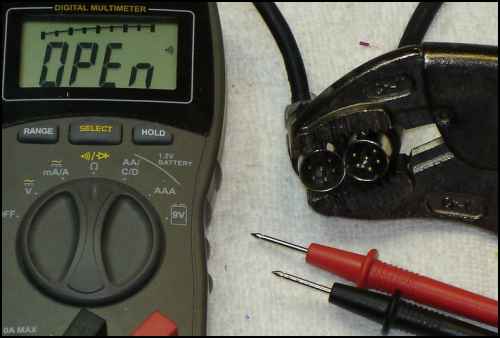

Testing; boring but necessary.

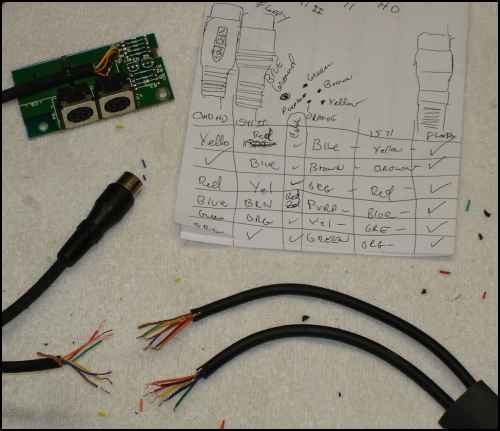

How did I end up with four different
connectors; with different wire color patterns?

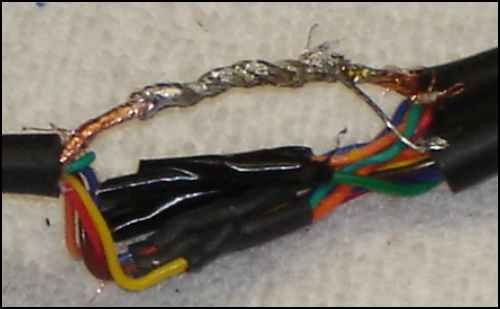

Some foil to complete the shielding;

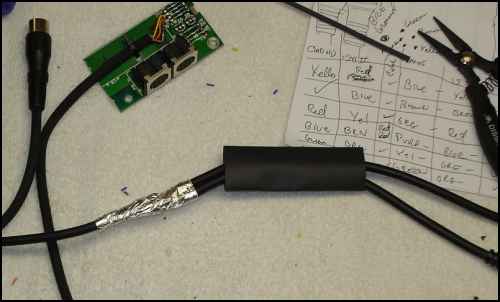

and the heat shrink to finish it off; finally.

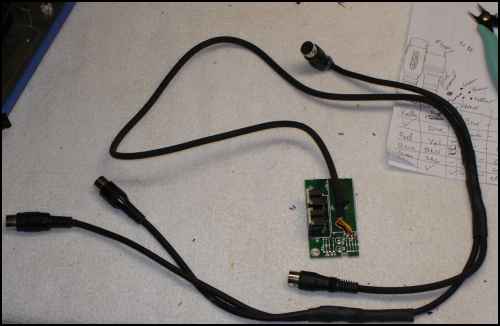

Time for more testing.

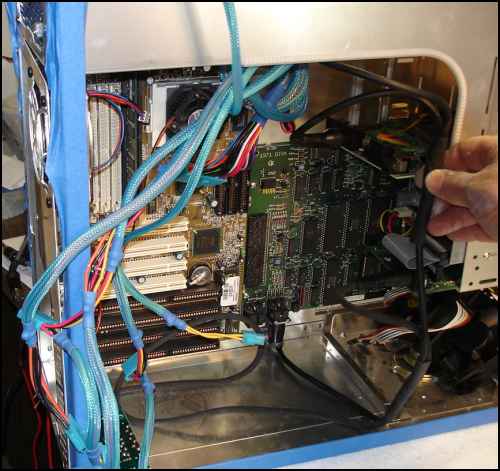

Here is about where it lives in the case.

Next... as in next time.
