June 12, 2005

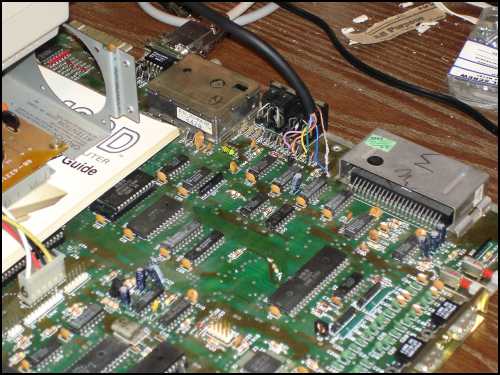

I tapped into the serial bus
at the ferrite beads, just before
the external connector.

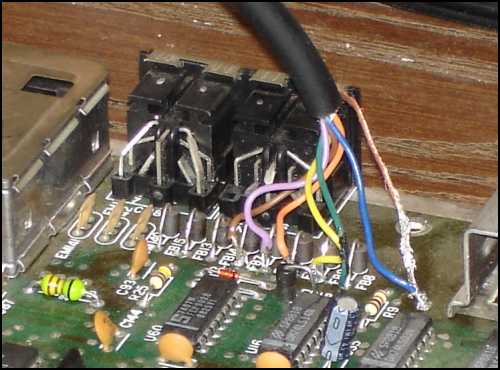

A closeup shot.

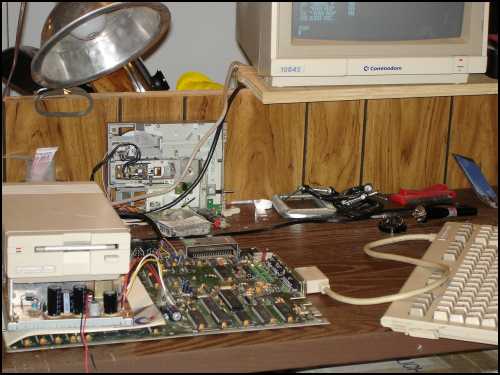

It works.

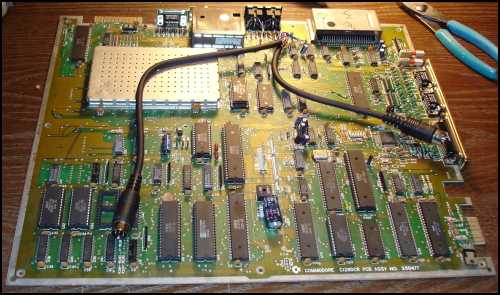

I removed the single connector and added a doubled up one. One for the
HD controller and one for the FD2000.
Closeup.
