July 3, 2005

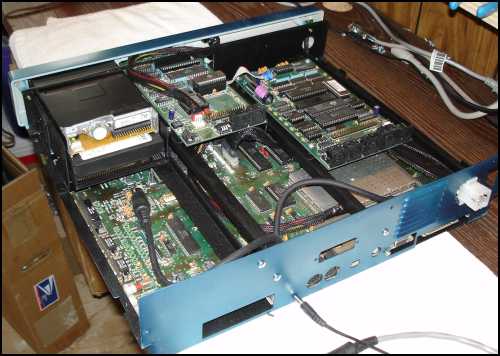

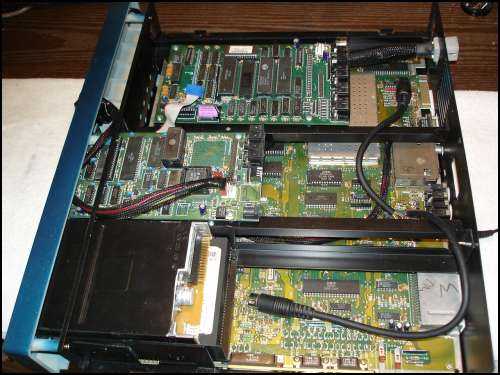

Here is is with the boards
and drives in place.

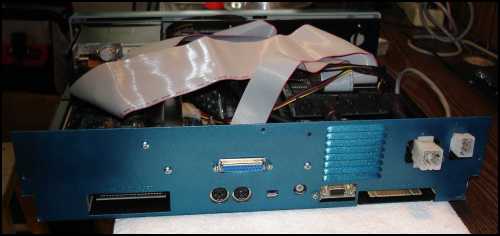

A view from the rear. Now to
attach the connecting wires.

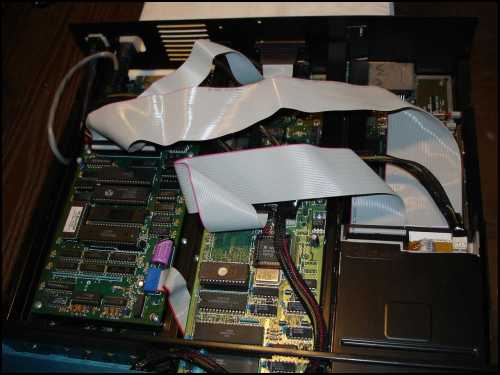

Here's a shot with
the cables connected.

What a mess. With all the
work I've done on this mod,
I can't leave it like this.

After a little discussion with my
partner, we decided on rounding
the cables the old school way.

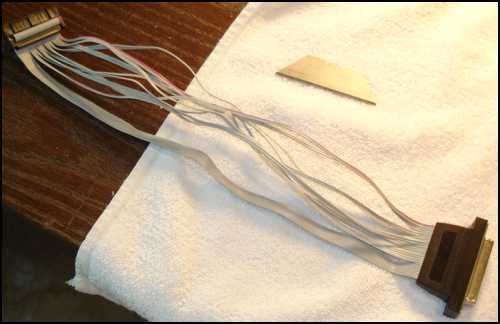

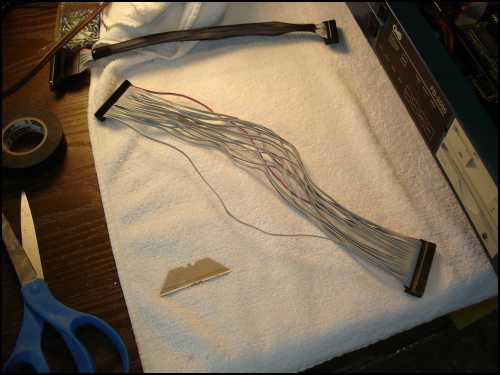

Separate the wires in groups of two.

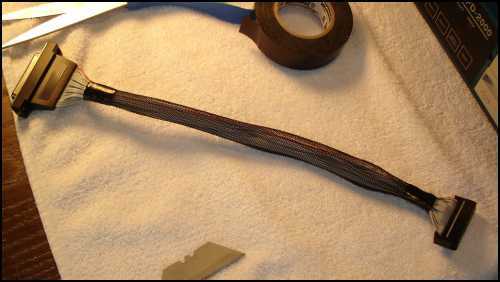

Then cover with the sleeving material.

Next the floppy cable.

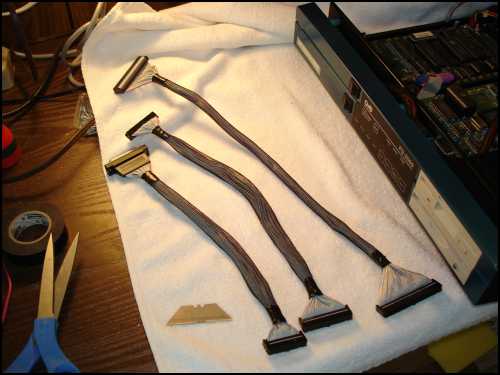

All three cables rounded and covered.
